ALUMINIUM X BEAM

DSC4961
3F5B4513
DSC4970
3F5B4512

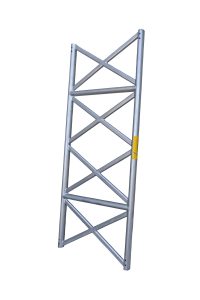

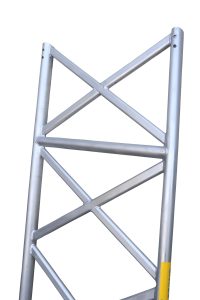

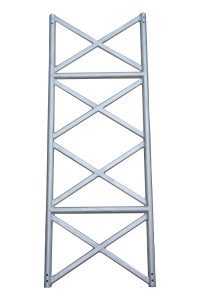

Aluminium X beam (750 mm) was originally designed to provide a light weight alternative to traditional steel unit beam .It has over twice the allowable working load in both bending moment and shear. The 750mm deep X Beam is also used as the main structural component & temporary roofing system.

ASCEND X BEAM consistently manufactured 6082 T6 aluminium that fully designed as per BS EN 8118 & EN 1999-1-1

Contact us

SPECIFICATION :

Top, Bottom & Vertical Alu Profile: 48.3*4.0 Mm Wall Thickness
Diagonal Alu Profile: 40*21*3.5 Mm
All Joints Are Tig Welded (Welder Qualified To Bs En 9606-1-1)
X-beam Standard Length :(2, 2, 4, 5 & 6mtr)
Non Standard Length Made To Order
