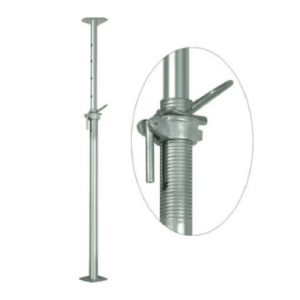

ASCEND Telescopic Steel Prop normally used as temporary vertical support in construction works. A prop consists of two tubes which are telescopically displaceable within each other. Inner tube 48.3 mm OD diameter tube provide with hole for the coarse adjustment of the prop. Outer Tube 60.3 mm OD diameter tube one end of which is threaded externally. End plate which is fixed at right angle to end of inner and outer tube. Collar Nut which SINincorporates one handle and has one face which supports the pin and it internally threaded to provide proper length adjustment for leveling. Prop pin used for inner tube holes is secured to the prop.
